Pallet Rack Repair Wisconsin - Illinois

Repairing your pallet racks will save you over 50% on the cost of a new pallet rack installation. When you get pallet racking repair services from AJ Enterprises, you save time and money. We have 4 great options to stabilize your system:

RXFB Flush Pallet Column Repair

RXSB Set Back Pallet Rack Column Repair

Econo Max Pallet Rack Repair Components

RXA1A Premium Pallet Rack Repair

Don't create bottlenecks in your supply chain due to damaged pallet racks. Save your company time, money, and hassle with AJ Enterprises. We are the only pallet rack repair company of our kind in Wisconsin or Illinois. Have us come out to your warehouse for a repair estimate to learn why our pallet rack repair service is more efficient than a new pallet rack installation.

FREE Quote

Bent pallet rack leg from forklift damage

Premium pallet rack repair and protect product

Slide To See Before & After

Pallet Flow Systems Repair for Wisconsin, Illinois and across the US

If you spot damage to your pallet racking, don’t wait for a collapse to happen before it’s fixed. A safety risk such as this costs you money, time, lawsuits, and can even result in lives lost.

AJ Enterprises is a distributor and installer for Rackmedx pallet rack repair parts. With Rackmedx pallet racking repair, protection of the pallet rack is built into the repair ensuring the repaired sections will last while meeting and exceeding the most stringent safety codes. There is no need for purchasing expensive column shields/protectors – all the protection you will ever need is built right into the repair parts. Once you understand all the benefits of pallet rack repair from AJ Enterprises, it is a no brainer compared to the costs of a new installation.

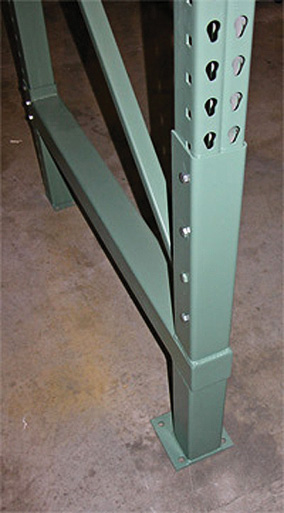

RXFB Flush Pallet Rack Column Repair + Protect Components

Designed to repair damaged pallet rack columns and provide maximum protection from lift truck impact the RXFB is extremely durable, affordable and easy to install. Available for row formed and structural frames.

Fabricated from 3/16” wall tube steel, the pallet rack repair kit includes a seismic or standard footplate in any size required for your pallet rack system. 11 ga collars reinforce the repair splice.

Cross braces are provided when needed and should be requested at the time of order. Bottom horizontal is integrated into the component, diagonals and upper horizontals are optional.

Standard standard pallet rack colors, safety yellow and orange, are available at no charge. Custom color match is optional at a small additional charge.

RXFB Has Many Benefits Including:

The pallet rack repair kit can be welded (recommended) or bolted to the damaged pallet rack column.
It is available from 16” high to 96” high damage, including damage above the load beams.
The rack repair kit can be installed without unloading the pallet rack in most cases. However, if the damage is at or above the load beam, the beam level will need to be unloaded on both sides of the pallet rack column.
Our RXFB pallet rack repair kits install in about 30 minutes. That's time and money spent on safety and productivity.
The repair kits reduce pallet rack system maintenance costs by eliminating recurring rack damage.

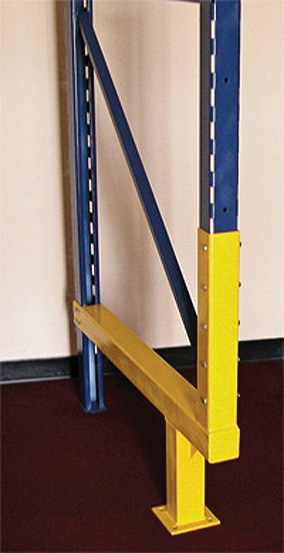

RXSB Set-Back Pallet Rack Column Repair

Designed and fabricated to repair damaged pallet rack columns, provide maximum protection from lift truck impact and extra maneuverability in narrow aisles. RXSB is extremely durable, affordable and easy to install. Available for row formed and structural frames.

Fabricated of 3/16” wall tube steel, the RXSB includes a seismic or standard footplate in any size required for your pallet rack system. 11 ga collars reinforce the repair splice.

Cross braces are provided when needed and should be requested at the time of order. Bottom horizontal is integrated into the component, diagonals and upper horizontals are optional.

Standard manufacturer's pallet rack colors, safety yellow and orange, are available at no charge. Custom color match is optional at a small additional charge.

Set-Back Repair Parts Have Many Benefits, Including:

The RXSB repair kits can be welded (recommended) or bolted to the damaged rack column. RXSB is available for damage 16” high to 96” high, including damage above the load beams.
RXSB pallet rack repair kits can be installed without unloading the pallet rack in most cases. However, if the damage is at or above the load beam, that beam level only, will need to be unloaded on both sides of the pallet rack column.
Like the RXFB pallet rack repair kits, the RXSB can be installed in about 30 minutes.
By replacing the damage with a RXSB pallet rack repair kit, the maintenance costs eliminates future accidents from the pallet rack damage.

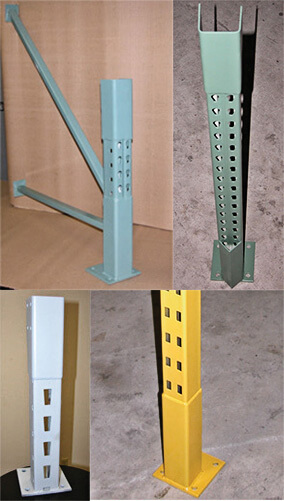

Econo maX: Our Most Affordable Pallet Rack Repair Components.

Econo maX pallet rack repair components are designed for quick installation and for protection against impact.

The Econo Max Pallet Rack Repair Kit is available for most manufactured roll formed and structural framed pallet racks.

They can be bolted with RXECB or welded with RXECW in place. Includes angle deflector or Bully column guard.

All components include:

Seismic or standard footplate
Bully column guard or Angle deflector
One X brace
Color matched paint

Drilling is required for bolt-in components. Contact us if a diagonal brace or 2nd X brace is needed.

Color matched paint is available at no charge, however, we cannot guarantee a perfect match.

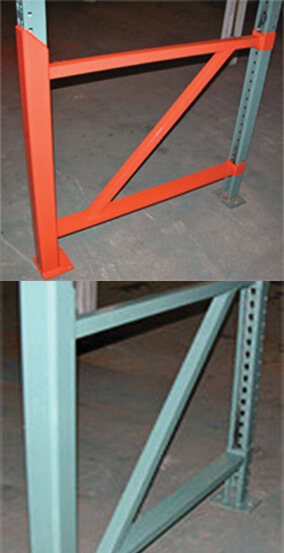

RXA1A: Our Premium Pallet Rack Repair + Protect Components

Designed and fabricated to repair + protect damaged pallet rack columns. RXA1A is a heavy duty component that has cross bracing integrated and repairs pallet rack damage that includes diagonal and upper horizontal cross braces. Available for row formed and structural frames.

Column is fabricated of ¼” wall tube steel, lower horizontal is channel, diagonal and upper horizontals are tube steel.

No additional guards are needed. Weld in application only.

Standard manufacturer's rack colors, safety yellow and orange, are available at no additional charge. A custom color match is available for a small additional charge.

RXA1A is available for damage 36” to 96” high, including damage at or above the load beam.

RXA1A can be installed without unloading the pallet rack in most cases. However, if the damage is at or above the load beam, that beam level only will need to be unloaded on both sides of the rack column.

RXA1A pallet rack repair pieces can be installed in 30 minutes.

RXA1A reduces rack system maintenance costs by eliminating recurring pallet rack damage.

RXA1A is a low cost, very effective alternative to replacing damaged pallet rack columns.

FREE Quote

FAQs

Q. Does it matter if rack frame braces are damaged?

A. Yes. The rack frame bracing consists of horizontal and/or diagonal members that join the front column to the rear column. These members are very carefully designed by the rack manufacturer to stabilize the rack frame in the cross-aisle direction and to support each of the individual columns, which are also in the cross-aisle direction. Any damage to these components could jeopardize the stability of the frames and could degrade the strength of the column.

Q. Can you repair our brand of racks?

A. That is most likely the case as the pallet rack repair components are manufactured for your rack brand. These include every roll-formed manufacturer we are aware of, including Interlake, Unarco, Speed Rack, Sturdi-Bilt, Penco, Frazier, Rid-U-Rak, Inca, Mi-Rak, and many others. We also repair structural racks.

Q. Can a pallet rack repair reduce costs more than a new pallet rack installation?

A. You'll save 50% or more by eliminating most of the time consuming tasks associated with replacing damaged racks. Additionally, your pallet rack columns will be protected. However, if the rack is damaged the first load beam level must be unloaded of any product.

RackmedX eliminates costly and time-consuming tasks, including unloading racks (in most cases), purchasing new racks, dealing with expensive shipping costs, and dismantling and installing new racks.

Q. Will a pallet rack repair reduce future maintenance costs?

A. Built-in protection is included in the manufacturing of our products. The Bully column guard is part of the structure of all EconomaX components. RackmaX components are fabricated from 3/16" and 1/4" tube steel. All light duty (3 x 1.5") rack columns are installed with an additional reinforcing column to eliminate twisting and increase structural stability and the Bully column guard.

Contact AJ Enterprises today to learn how we can save you big money with pallet rack repair while saving you time and resources.
